FLANGES

We supply Stainless Steel flanges, High Nickel alloy Flanges and backup stainless pipe flanges. Our pipe flanges come in a wide selection of dimensions and alloys. Flanges are available in Slip On, Blind, Weld neck, and Socket weld, Threaded, Lap Joint, Orifice and Spectacle Blinds, Tongue & Groove & Ring Joint Types, Vacuum Flanges, Exhaust Flanges, Profile Flanges. Pressure rating class of 150, 300, 600, 900, 1500 & 2500 and size from 1/2” NB to 64” NB sizes Flanges are manufactured as per ANSI B 16.5, B16.47, MSS SP 44, API, BS, AWWA, DIN standards. As we know that the flange is used to connect two pipes, pumps and valves and this product works same as normal flange. By using appropriate quality raw material, this product is manufactured and is represented in the market.

Specifications	ASTM A182 / A240 and ASME SA182 / SA240
Stainless Steel Flanges Sizing	1/2” NB to 64” NB
Standards	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
SS Flanges Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Stainless Steel Pipe Flanges Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
SS Pipe Flange Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Standard	ASME / ANSI / ASA B16.5 ASME / ANSI / ASA B16.34 (welding/ threaded end) ASME / ANSI / ASA B16.47 Large Dia.

Slip on Flanges

Slip-on flange a solid, circular pipe flange which is slipped over the end of a pipe and welded in. We offer high quality slip on flanges that are manufactured stringently following latest technology.

• Slip-on Flanges Size: 150#, 300#, 600#, 900#, 1500#, 2500#

• Slip-on Flanges Pressure: 1/2"NB TO 48"NB

• Slip-on Flanges European Series: PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 DIN

• Slip-on Flanges specification as per the international standard: ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

• Slip-on Flanges Facing Types: American Series: Flat Face(FF), Raised Face(RF), Tongue (T), Groove (G), Female (F), Male (M),Ring Joints Face (RJ)European Series: Type A (Flat Face), Type B (Raised Face), Type C (Tongue), Type D (Groove), Type E (Spigot), Type F (Recess), Type G (O-Ring Spigot), Type H (O-Ring Groove)

• Stainless Steel Slip on Flange: ASTM A182 Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

• Duplex Steel Slip on Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

• Alloy Steel Slip on Flange: AS SORF Flange ASTM SA 182 F1/F5/F9/F11/F22/F91

• Nickel Alloy Slip on Flange Standard: ASTM / ASME SB 564 / 160 / 472

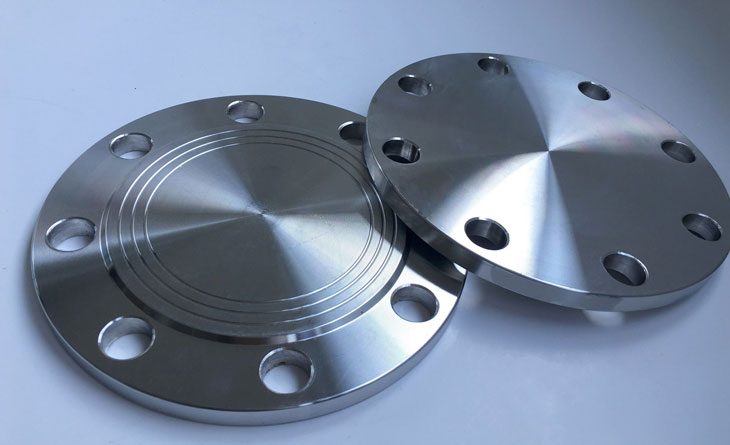

Blind Flanges

Fabricated using finest quality of Stainless Steel, our range of blind flanges plate type and widely used to close the ends of pipes, valves, pressure vessel openings and other channels where one end needs to be blanked off. These blind flanges can be customized on varying parameters and bear following specifications.

• ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

BLIND FLANGES GRADE:

• Stainless Steel Blind Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI,316H, 316L, 316LN,317, 317L, 321, 321H, 347, 347H, 904L

• Duplex Steel Blind Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

• Alloy Steel Blind Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91

BLIND FLANGES:

• Blind Flanges Size: 1/2"NB TO 48"NB

• Blind Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

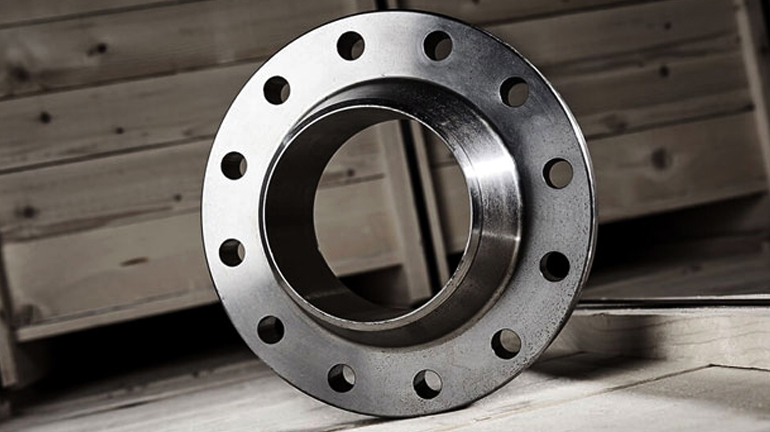

Weld Neck Flanges

We offer a varied range of top quality Weld Neck Flanges. The wall thickness of these products should match with the dimension of the pipe to minimize the erosion and turbulence inside the pipeline. These products have been manufactured with the most advanced technologies and high grade raw materials. They products are commonly used for high pressure, hot or cold temperatures.

• Weld Neck Flanges Size: 1/2”NB TO 48”NB

• Weld Neck Flanges Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#

EUROPEAN SERIES:

PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100

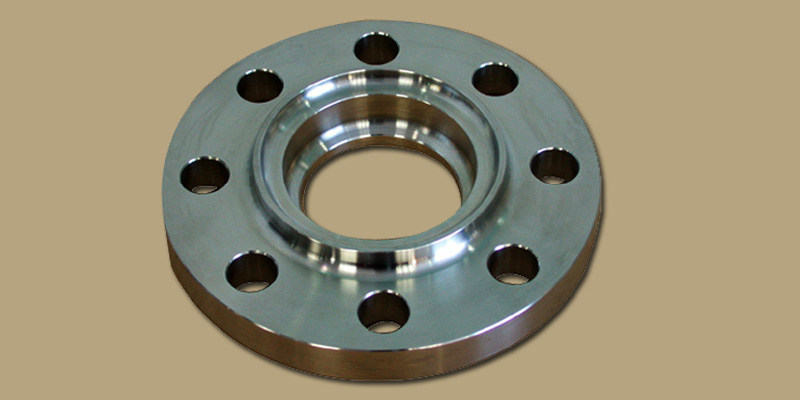

Socket Weld Flanges

We are engaged in manufacturing an extensive range of Socket Weld Flanges, which is welded to the end of a pipe. This welding helps in connecting two pipes together. Moreover, these products are premium in quality and available in varied shapes and sizes. We ensure that our products match with the industry standards.

• Socket weld Flanges Size: 1/2"NB TO 48"NB

• Socket weld Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

SPECIFICATIONS AS PER CLIENT STANDARD:

• ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

SOCKET WELD FLANGES GRADE:

• Stainless Steel Socket Weld Flange: ASTM A182

• Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

• Duplex Steel Socket Weld Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

• Alloy Steel Socket Weld Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91

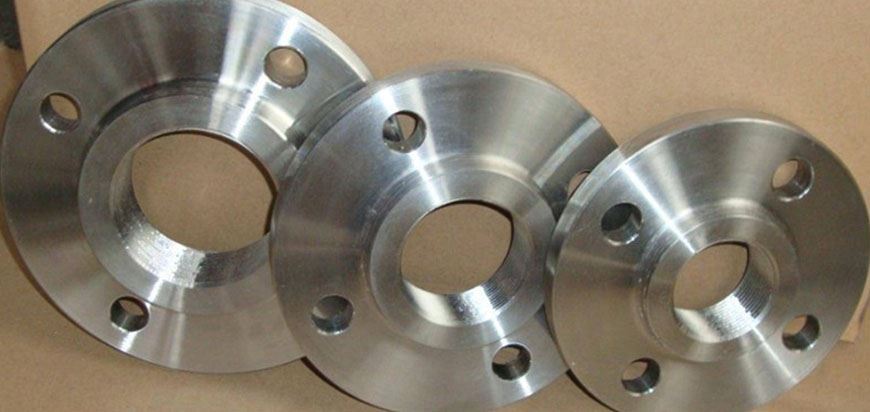

Threaded Flanges

The expert team of our company offers Threaded Flanges to our esteemed clients. Manufactured using high quality stainless steel, these flanges are provided in varied dimensions, pressure ratings and other specifications. Provided in a classes of 300, #600, #1500, #150# and 2500, #these flanges are appreciated for their durability, corrosion resistance and high functionality.

• Threaded Flanges Size: 1/2"NB TO 48"NB

• Threaded Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

SPECIFICATIONS AS PER CLIENT REQUIREMENTS:

ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

THREADED FLANGES GRADE:

• Stainless Steel Threaded Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

• Duplex Steel Threaded Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

• Alloy Steel Threaded Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91

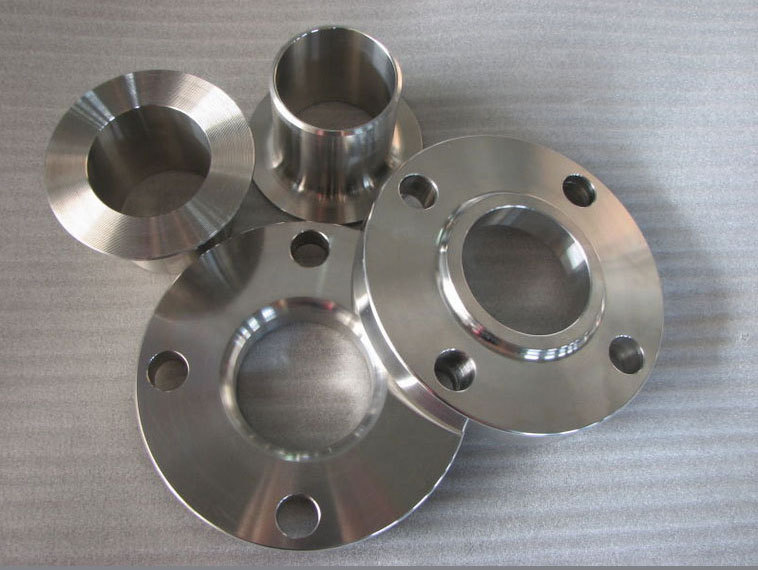

Lap Joint Flanges

We are the largest Manufacturer and exporter of industrial suppliers. We offer our clients an assortment of Steel Lapped Joint Flanges that are widely used in many industries. Range: 1/2" NB to 60" NB

• Lap joint Flanges Size: 1/2"NB TO 24"NB

• Lap joint Flanges Standard : Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc

LAP JOINT FLANGES GRADE:

• Stainless Steel Lapped Joint Flange: ASTM SA 240 Grade : 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

• Duplex Steel Lapped Joint Flange: S 31803 , S 32205.

• Alloy Steel Lapped Joint Flange: ASTM SA 387 Grade 1/5/9/11/22/

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94
